AQUAHELIOS SP018

REEF TANK LIGHT

60CM/24IN

Max 150W

90CM/35IN

Max 240W

12CM/47IN

Max 325W

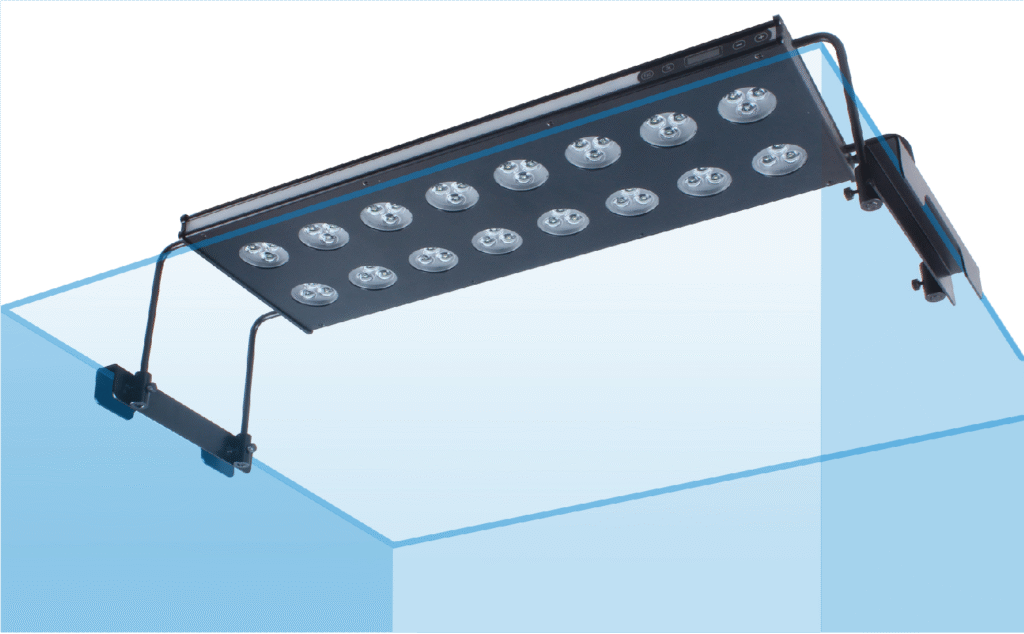

Professional Smart Reef Aquarium Light for Medium-to-Large Tanks 60–150 cm

	SP018-60	SP018-90	SP018-120
Size	560x205x31mm	560x205x31mm	560x205x31mm
LED Power	Max 150w	Max 240w	Max 325w
LEDS Quantity	48pcs	72pcs	96pcs
Input Voltage	AC 100-240V	AC 100-240V	AC 100-240V
Shell Material	Aluminium	Aluminium	Aluminium
For Tank Size	60-90cm	90-120cm	120-150cm
Working Temperature	0℃to 40℃	0℃to 40℃	0℃to 40℃

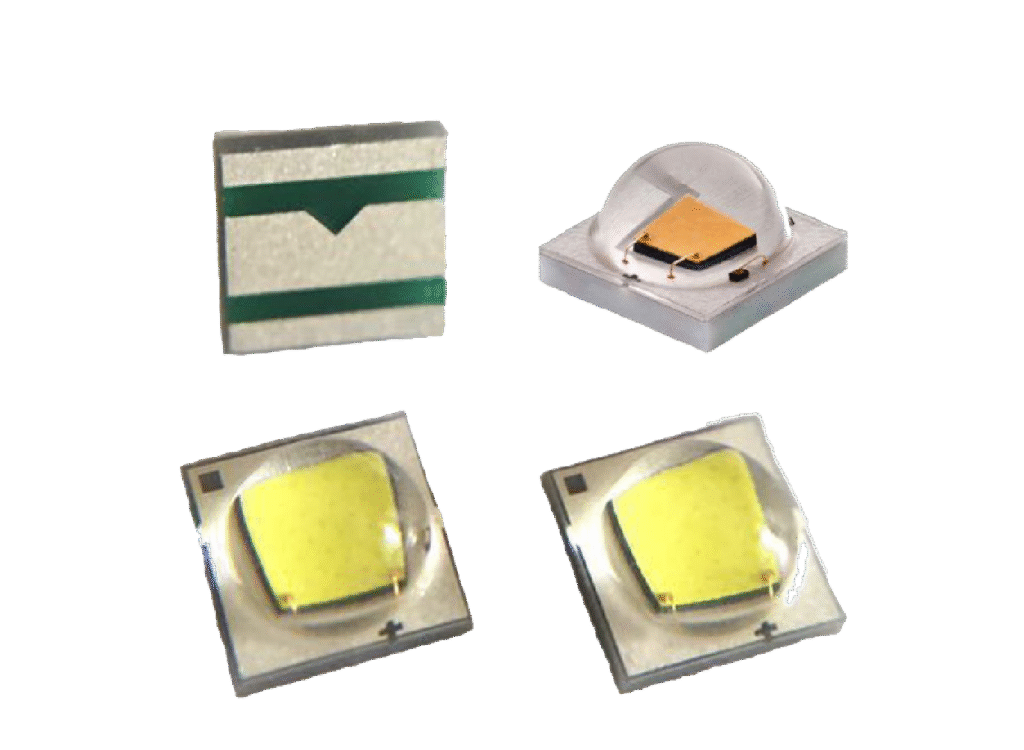

CREE/OSRAM LED

The LED is the most critical component of a lamp. We utilize top-tier 3W and 5W LEDs from leading brands like CREE and OSRAM, delivering exceptional brightness, long-lasting luminosity, excellent color rendering, and precise chromatic performance.

Full Spectrum

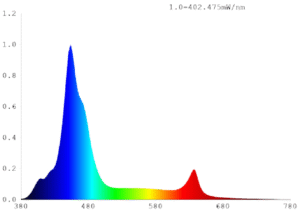

The light wavelength range is 400nm~660nm; covering the most important range required by marine organisms to grow.

High-quality power supply

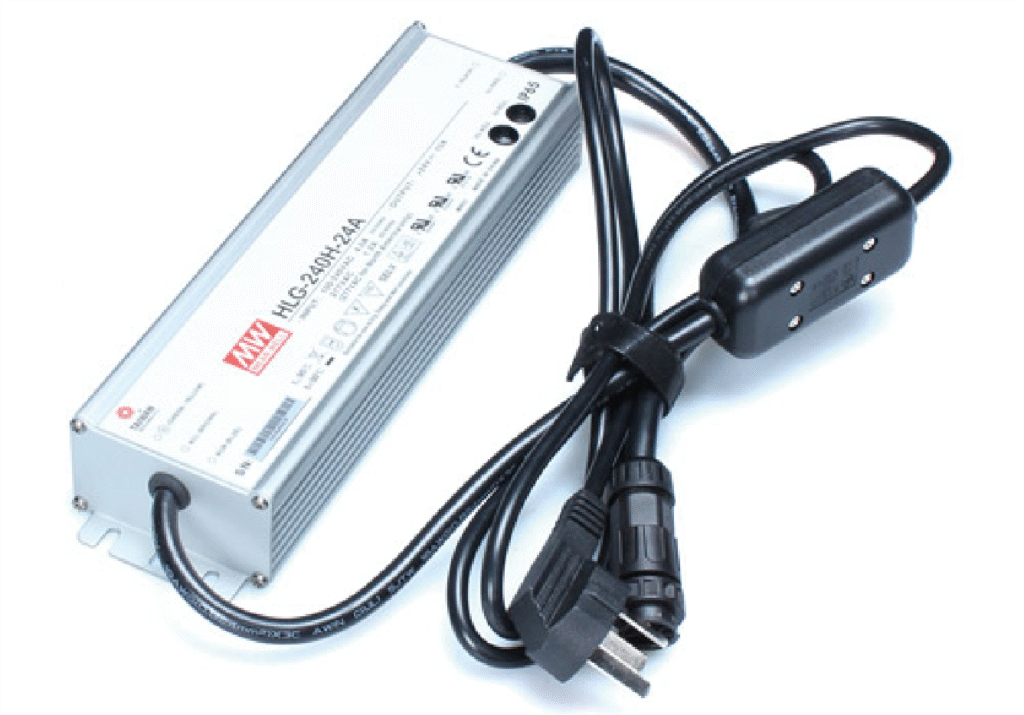

A high-quality power supply is the foundation of a lamp’s stable performance. We use internationally renowned MeanWell power supplies, which feature IP68 waterproof rating and carry nearly all major global certifications. With over 5 years of warranty, they are equipped with waterproof connectors and switches for ultimate reliability.

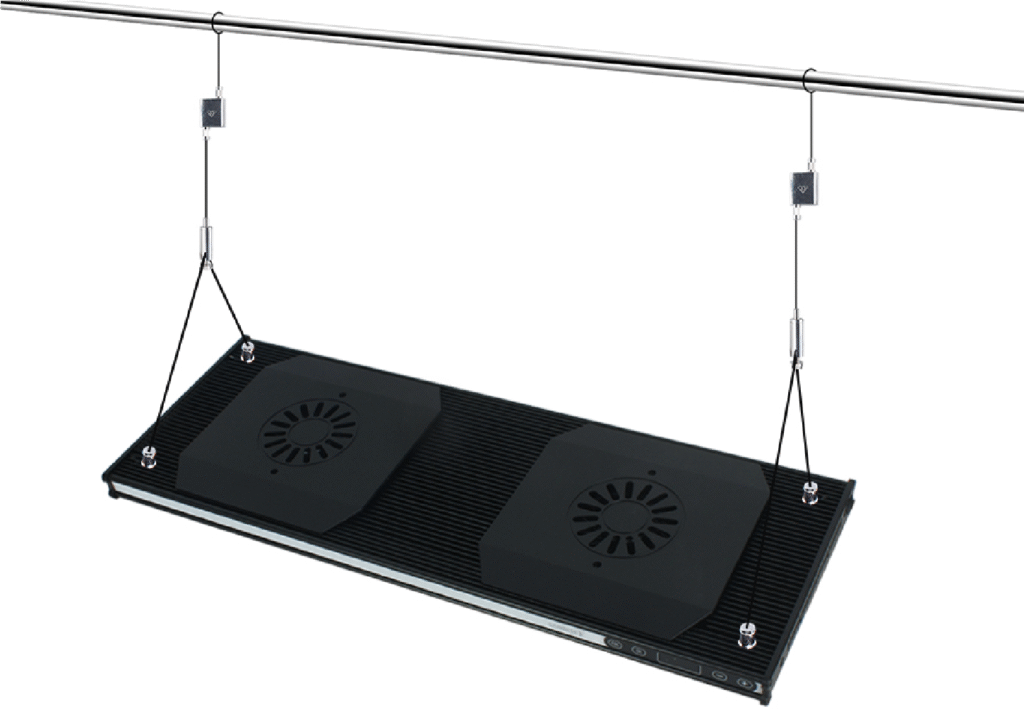

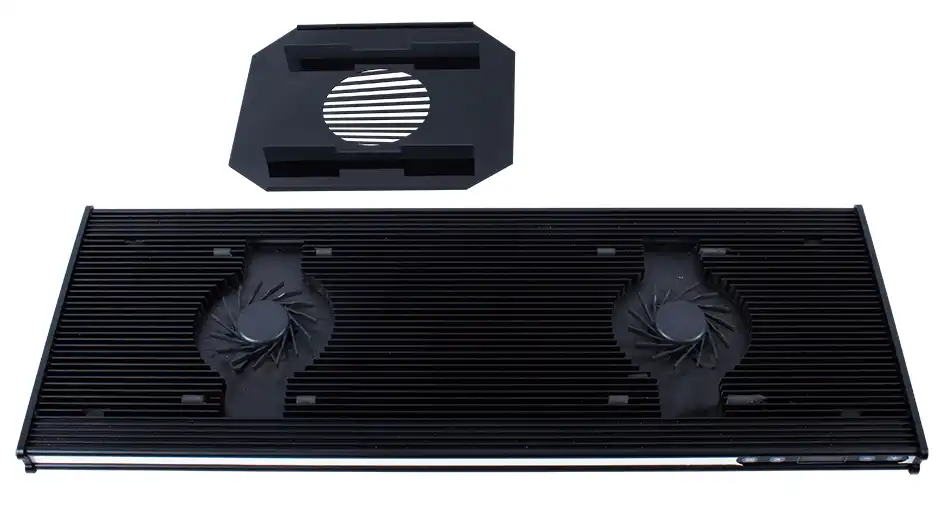

Intelligent Temperature-Controlled Fan

Automatically adjusts fan speed based on the heat sink’s temperature, reducing noise and extending the light’s lifespan.

Patented Tri-in-One Optical Lens

Patented design of three-in-one module lens secondary light distribution, 90/120degree secondary optical lens for your choose, light uniformity, strong penetration ability.

This reef aquarium light features six independent dimming channels with six distinct color options. Each color’s brightness is adjustable from 0% to 100%, allowing users to freely customize the light spectrum for different application scenarios.

SP018-60

Channel A：White 16 pcs
Channel B：Royal Blue 16 pcs
Channel C：Blue：6 pcs
Channel D：Violet 3 pcs + UV 3 pcs
Channel E： Red 2 pcs
Channel F： Green 2 pcs

SP018-90

Channel A：White 24 pcs
Channel B：Royal Blue 24 pcs
Channel C：Blue：10 pcs
Channel D：Violet 5 pcs + UV 5 pcs
Channel E： Red 2 pcs
Channel F： Green 2 pcs

SP018-120

Channel A：White 32 pcs
Channel B：Royal Blue 32 pcs
Channel C：Blue：12 pcs
Channel D：Violet 6 pcs + UV 6 pcs
Channel E： Red 4 pcs
Channel F： Green 4 pcs

The 450-475nm blue light is vital for coral/fish growth, while violet enhances fluorescence. White LEDs balance color temperature for natural daylight effects – together creating perfect full-spectrum lighting. Red and green wavelengths are also essential for certain corals’ growth and add a dreamy, vibrant aesthetic to your aquarium. However, we recommend keeping red intensity at moderate levels, as excessive red light may accelerate unwanted algae growth.

Our Recommended Settings:

For optimal coral health, set blue channels to 80-100% while keeping white channels under 60% during peak hours. Maintain a 7-hour daily photoperiod.
New users should gradually increase brightness over 3-5 days to acclimate marine life safely.

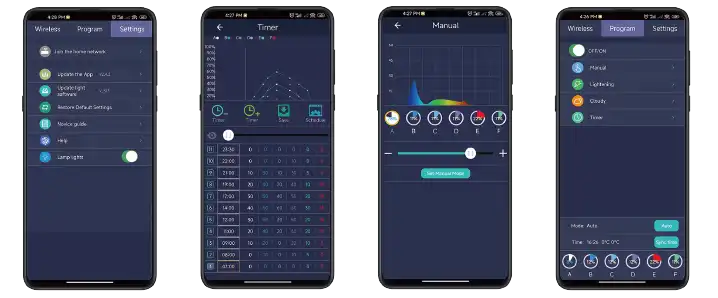

Wi-Fi control via smartphone or tablet using a free app, available on the App Store for iOS and Google Play for Android

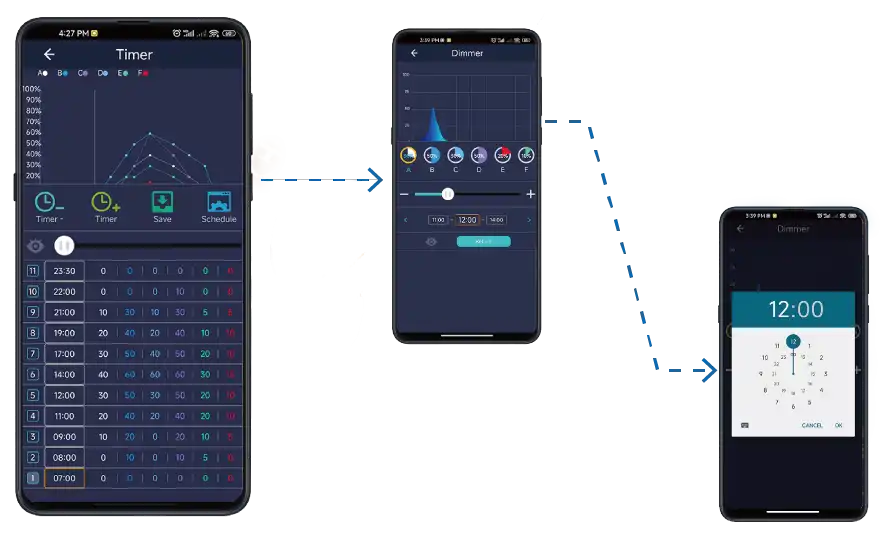

This reef tank light features a programmable timer that can be controlled either through a mobile app or manually via the onboard display. Each timing segment and individual channel’s brightness is fully customizable to meet specific needs. The system supports adjustable timer groups, allowing up to 24 programmable segments for ultimate lighting control.

WiFi control supports two modes:

AP Mode – Direct connection to control a single light.
SAT Mode – Connect through your home router to control multiple lights simultaneously on your local network.
